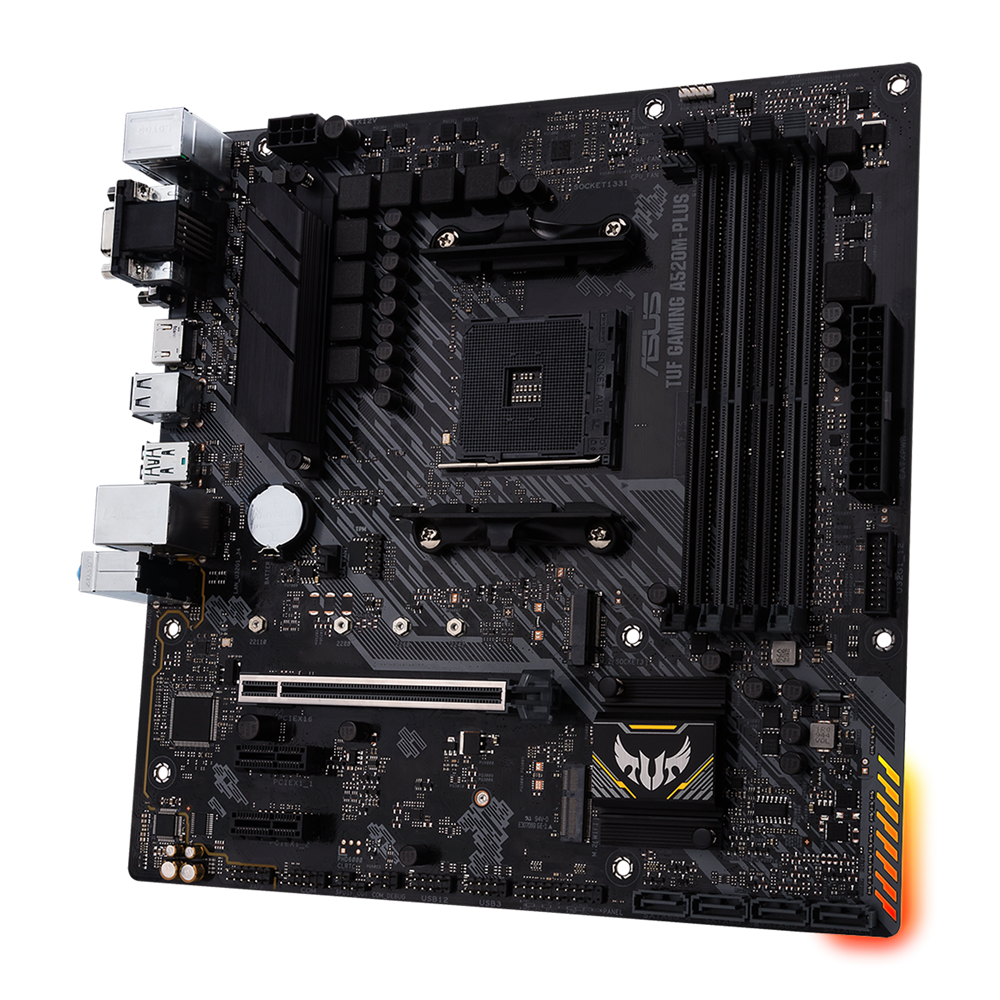

TUF GAMING AMD AM4 A520 MicroATXマザーボード ASUS:TUF GAMING A520M-PLUS
TUF GAMING AMD AM4 A520 MicroATXマザーボード ASUS:TUF GAMING A520M-PLUS
(0192876823668)
AMD A520 (Ryzen AM4) micro ATXマザーボード、M.2サポート、1Gbイーサネット、HDMI/DVI/D-Sub、SATA 6 Gbps、USB 3.2 Gen.2 Type-A、Aura Sync RGBライティング対応
- AMD AM4ソケット：第3世代AMD Ryzen?および第3世代AMD Ryzen?とRadeon?グラフィックス・プロセッサに対応しています。
- 包括的な冷却:VRMおよびPCHヒートシンク、Fan Xpert 2+
- オンラインゲーム向け：Realtek L8200Aイーサネット、Wi-Fiモジュール用M.2スロット（Key E）、TUF LANGuardとTurboLANテクノロジー
- Aura Sync RGBライティング：互換性のあるPCギアの膨大なポートフォリオとLED照明を同期させる
対応CPU
AMD AM4 Socket for AMD Ryzen? 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors *
* Refer to www.asus.com for CPU support list
* Refer to www.asus.com for CPU support list
搭載チップセット
AMD A520
メインメモリ
4 x DIMM; Max. 128GB; DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
グラフィックス機能
1? x D-Sub
1? x DVI-D
1? x HDMI 2.1(4K@60HZ)
1? x DVI-D
1? x HDMI 2.1(4K@60HZ)
拡張スロット
AMD Ryzen? 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1
ストレージ機能
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen? 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors :
1 x M.2 Socket 3; with M Key; Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s);
Support Raid 0; 1; 10
AMD Ryzen? 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors :
1 x M.2 Socket 3; with M Key; Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s);
Support Raid 0; 1; 10
LAN機能
Realtek L8200A 1Gb Ethernet
TUF LANGuard
TUF LANGuard
無線機能
M.2 slot only (Key E) (Support PCIe interface)*
*Wi-Fi module is sold separately.
*Wi-Fi module is sold separately.
オーディオ機能
Realtek ALC887/897?7.1 Surround Sound High Definition Audio CODEC *
– Supports : Jack-detection; Multi-streaming; Front Panel Jack-retasking; up to 24-Bit/192kHz playback
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
– Supports : Jack-detection; Multi-streaming; Front Panel Jack-retasking; up to 24-Bit/192kHz playback
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB機能
Rear USB Port ( Total 7? )
1 x USB 3.2 Gen 2 port(s)(1 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 5? )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
3 x USB 2.0 port(s)(3 x Type-A)
1 x USB 3.2 Gen 2 port(s)(1 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 5? )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
3 x USB 2.0 port(s)(3 x Type-A)
Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
– PC Cleaner
– System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
– PC Cleaner
– System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS TUF PROTECTION
– ASUS DIGI+ VRM
– ASUS ESD Guards
– TUF LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core+
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
– ASUS DIGI+ VRM
– ASUS ESD Guards
– TUF LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core+
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
背面インターフェース
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue)Type-A;
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue)Type-A;
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
基板上インターフェース
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
1 x M.2 Socket 3 with M key; type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
2 x Chassis Fan connector(s)
1 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
1 x M.2 Socket 3 with M key; type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
主な付属品
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x M.2 SSD screw package(s)
1 x M.2 Key E screw package(s)
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x M.2 SSD screw package(s)
1 x M.2 Key E screw package(s)
BIOS機能
256 Mb Flash ROM; UEFI AMI BIOS
管理機能
WOL by PXE
OS
Windows? 10 64-bit
フォームファクター（サイズW×D）
mATX Form Factor
9.6? inch x 9.6? inch ( 24.4? cm x 24.4? cm )
9.6? inch x 9.6? inch ( 24.4? cm x 24.4? cm )
